WDA-INT-CAR2
2-Panel Carrara
Smooth, transitional door with two crisp panels for modern or classic rooms.
- Construction
- Hollow-Core
- Material
- Molded composite
- Finish
- Primed white
- Sizes
- 24–36″W · 80″H
- Config
- Slab · Pre-hung
Miami · Hialeah, FL
The best knowledge
in South Florida
Best-in-class product expertise, dependable service, genuine quality and honest, real prices — for builders, contractors and homeowners across South Florida.
Best KnowledgeBest ServiceReal Prices
6 Interior Profiles
Thermal-Break Aluminum
HVHZ Impact-Rated UPVC
Quotes & Project Sourcing
Section 01 · Hollow-Core
Interior doors.
Hollow-core construction with a factory-primed, paint-grade surface. Available as slabs or pre-hung units.
WDA-INT-MLD6
6-Panel Molded
The timeless colonial six-panel silhouette; versatile across traditional homes.
- Construction
- Hollow-Core
- Material
- Molded composite
- Finish
- Primed white
- Sizes
- 24–36″W · 80″H
- Config
- Slab · Pre-hung
WDA-INT-SHK1
1-Panel Shaker
A single recessed panel with clean square stiles — the most minimal Shaker.
- Construction
- Hollow-Core
- Material
- Molded composite
- Finish
- Primed white
- Sizes
- 24–36″W · 80″H
- Config
- Slab · Pre-hung
WDA-INT-SHK2
2-Panel Shaker
Our most popular profile; two balanced recessed panels for any interior.
- Construction
- Hollow-Core
- Material
- Molded composite
- Finish
- Primed white
- Sizes
- 24–36″W · 80″H
- Config
- Slab · Pre-hung
WDA-INT-SHK3
3-Panel Shaker
Three stacked recessed panels add vertical rhythm and architectural presence.
- Construction
- Hollow-Core
- Material
- Molded composite
- Finish
- Primed white
- Sizes
- 24–36″W · 80″H
- Config
- Slab · Pre-hung
WDA-INT-SHK5
5-Panel Shaker
Five recessed panels for a craftsman, equal-rail look that reads custom.
- Construction
- Hollow-Core
- Material
- Molded composite
- Finish
- Primed white
- Sizes
- 24–36″W · 80″H
- Config
- Slab · Pre-hung
Section 02 · Systems
Aluminum doors.
Thermally broken aluminum door systems for entrances and indoor–outdoor living.
WDA-ALU-FR
Aluminum French Door
Double-leaf swing door with slim frames and large glazed lights.
- Frame
- Thermal-break aluminum
- Glazing
- Double · Low-E
WDA-ALU-SLD
Aluminum Sliding / Patio
Smooth multi-panel slider with a low-profile sill for wide openings.
- Frame
- Thermal-break aluminum
- Glazing
- Double · Low-E
WDA-ALU-BF
Aluminum Bi-Fold Door
Folding panels stack to one side to open an entire wall.
- Frame
- Thermal-break aluminum
- Glazing
- Double · Low-E
WDA-ALU-PVT
Aluminum Pivot Entry
Oversized statement entry on a concealed pivot hinge.
- Frame
- Thermal-break aluminum
- Glazing
- Double · Low-E
Section 03 · Commercial
Aluminum commercial.
Heavy-duty aluminum commercial entrance systems for storefronts, hospitality and mixed-use projects across South Florida — impact-rated (LMI/SMI), ADA-compliant thresholds and Sea Turtle Protection Code glass options.
LMI/SMI Impact · ADA · Miami-Dade Approved
WDA-ALC-ENT
Aluminum Commercial Entrance
Heavy-duty aluminum commercial entrance system engineered for South Florida — LMI/SMI missile impact rating, 5" frame depth, 8"/10" ADA bottom-rail configurations, laminated glass options and 1/2" or 2" ADA-compliant thresholds. Sea Turtle Protection Code and privacy glass on request.
- Impact Rating
- (LMI/SMI) missile impact rated
- Frame Depth
- 5"
- Bottom Rail Options
- 8" / 10" ADA configurations available
- Glass Options
- Laminated 9/16" · Laminated Insulated 1-3/16"
- Additional Features
- Sea Turtle Protection Code glass · privacy glass options
- Maximum Design Loads
- (±) 120 PSF
- Threshold Options
- 1/2" / 2" ADA-compliant options
- Material
- High-quality aluminum · stainless steel hardware
- Special Coatings
- High-performance low-E coating available
- Maximum Panel Size
- 48" × 120" / 48" × 156" (with transom)

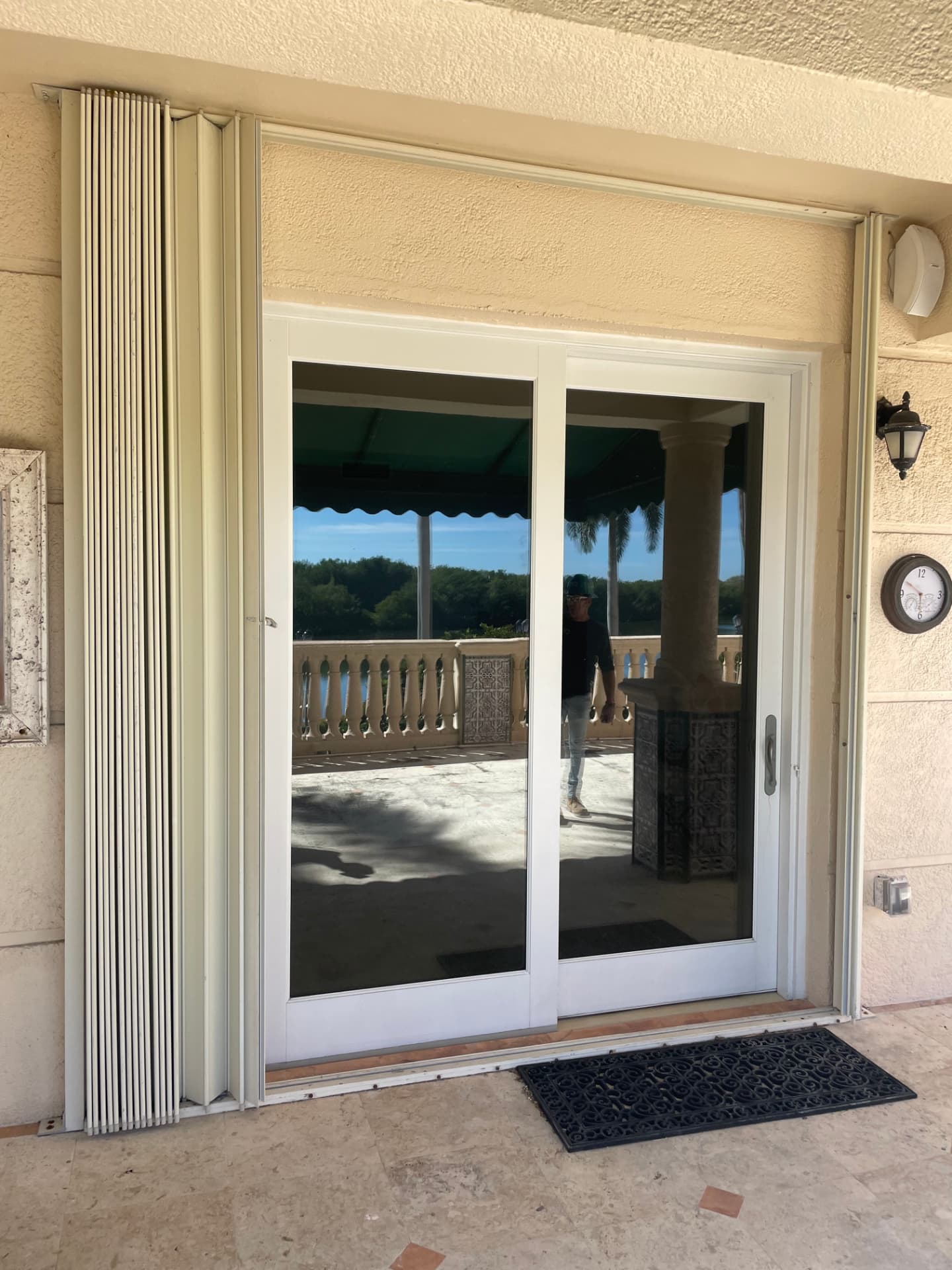

WDA-ALC-SLD
Aluminum Commercial Sliding Glass Door
Commercial-grade aluminum sliding glass door system — multi-track, LMI/SMI impact-rated and Miami-Dade NOA approved. Stainless steel assembly hardware, Sea Turtle Protection Code glass and privacy options.
- Impact Rating
- (LMI/SMI) missile impact rated
- Material
- Stainless steel assembly screws for corrosion resistance
- Track System
- Multi-track system available (check FA for configurations)
- Additional Features
- Sea Turtle Protection Code glass and privacy glass options
- Maximum Design Loads
- (+/-120) (+/-140) psf
- Glass Options
- Laminated 7/16" · Laminated 9/16" · Laminated Insulated 1-1/8" · Laminated Insulated 1-3/16"
- Special Coatings
- High-performance low-E coating available
- Maximum Panel Size
- 48" × 120"
Section 03 · Residential
Windows.
A residential window range covering the most-requested operating styles.
WDA-WIN-SH
Single-Hung Window
Operable bottom sash with a fixed top sash; a clean, dependable choice.
- Frame
- Thermal-break aluminum
- Glazing
- Double · Low-E
WDA-WIN-DH
Double-Hung Window
Both sashes operate and tilt in for easy cleaning and airflow control.
- Frame
- Thermal-break aluminum
- Glazing
- Double · Low-E
WDA-WIN-CSM
Casement Window
Side-hinged crank-out sash for full ventilation and a tight seal.
- Frame
- Thermal-break aluminum
- Glazing
- Double · Low-E
WDA-WIN-SLD
Horizontal Sliding
Sashes glide along a track; ideal for wider-than-tall openings.
- Frame
- Thermal-break aluminum
- Glazing
- Double · Low-E
WDA-WIN-AWN
Awning Window
Top-hinged sash opens outward, venting even in light rain.
- Frame
- Thermal-break aluminum
- Glazing
- Double · Low-E
WDA-WIN-PIC
Picture / Fixed
Non-operating window that frames the view with maximum glass.
- Frame
- Thermal-break aluminum
- Glazing
- Double · Low-E
Section 04 · PVC-U
UPVC systems.
Energy-efficient PVC-U window and door systems with multipoint security. Impact-rated 76AD and PremiDoor 88 options are tested for High-Velocity Hurricane Zones.
Tested to NAFS — AAMA · WDMA · CSA 101 / A440
WDA-UPVC-TT
Tilt & Turn Window
Inward sash that tilts for secure ventilation or turns fully open for cleaning and egress.
- System
- 76 (PVC-U)
- U-value
- ~0.21
- Max size
- 50″W × 80″H
- Design pressure
- ±85 PSF
WDA-UPVC-CS
Out-Swing Casement
Outward-swinging casement engineered for high wind loads and impact zones.
- System
- 76AD
- Max size
- 48″W × 84″H
- Design pressure
- ±120 PSF
- Impact
- Large-missile (LMI)
WDA-UPVC-FR
UPVC French Door
Double-leaf out-swing entry rated for High-Velocity Hurricane Zones.
- System
- 76AD · HVHZ
- Max size
- 44″W × 88″H
- Design pressure
- ±120 PSF
- Impact
- Large-missile (LMI)
WDA-UPVC-FX
Fixed / Picture Window
Non-operating window for maximum daylight with full impact protection.
- System
- 76AD · HVHZ
- Max size
- 48″W × 96⅞″H
- Design pressure
- ±120 PSF
- Impact
- Large-missile (LMI)
WDA-UPVC-LS
Lift & Slide Door
Precision lift-and-slide system for wide spans and effortless, smooth operation.
- System
- 88 · 5-chamber
- U-value
- 0.21–0.23
- Max span
- to 8'H × 15'W
- Acoustic
- to Rw 45 dB
WDA-UPVC-RD
UPVC Residential Door
Reinforced entrance door with multipoint locking and optional steel reinforcement.
- System
- 76 (PVC-U)
- Locking
- Multipoint
- Reinforcement
- Steel option
- Colors
- White · Woodgrain
Section 05 · Commercial Steel

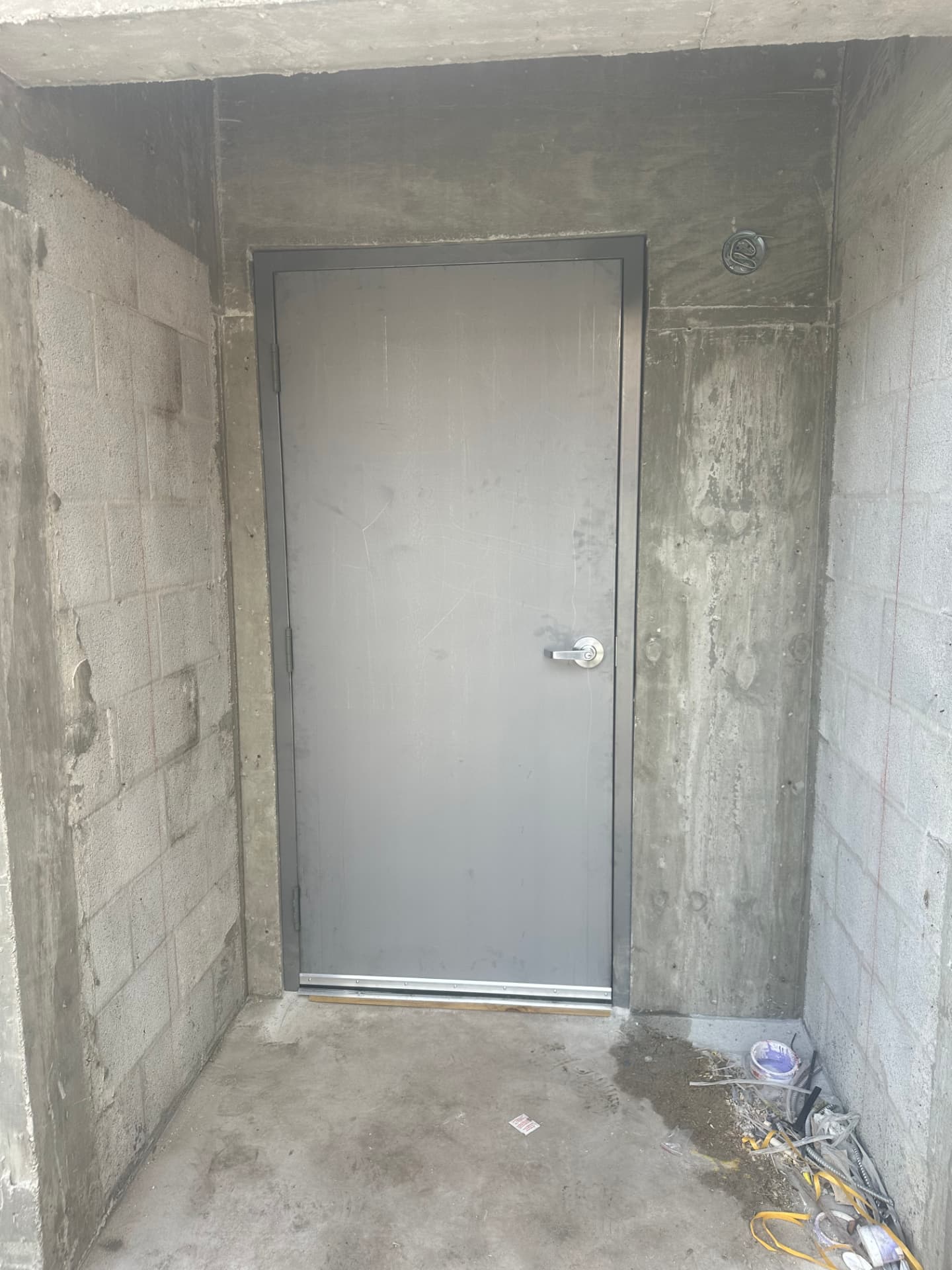

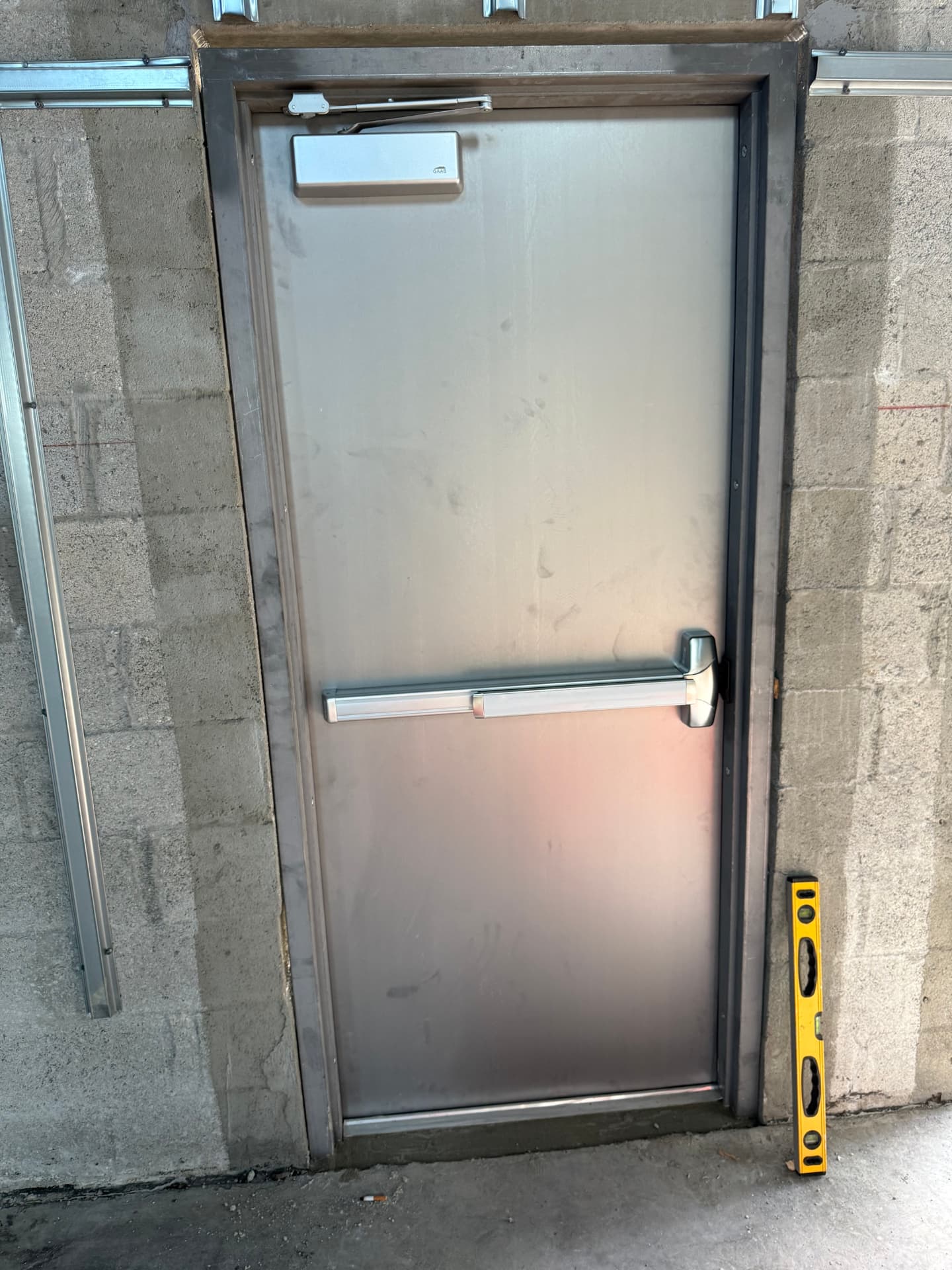

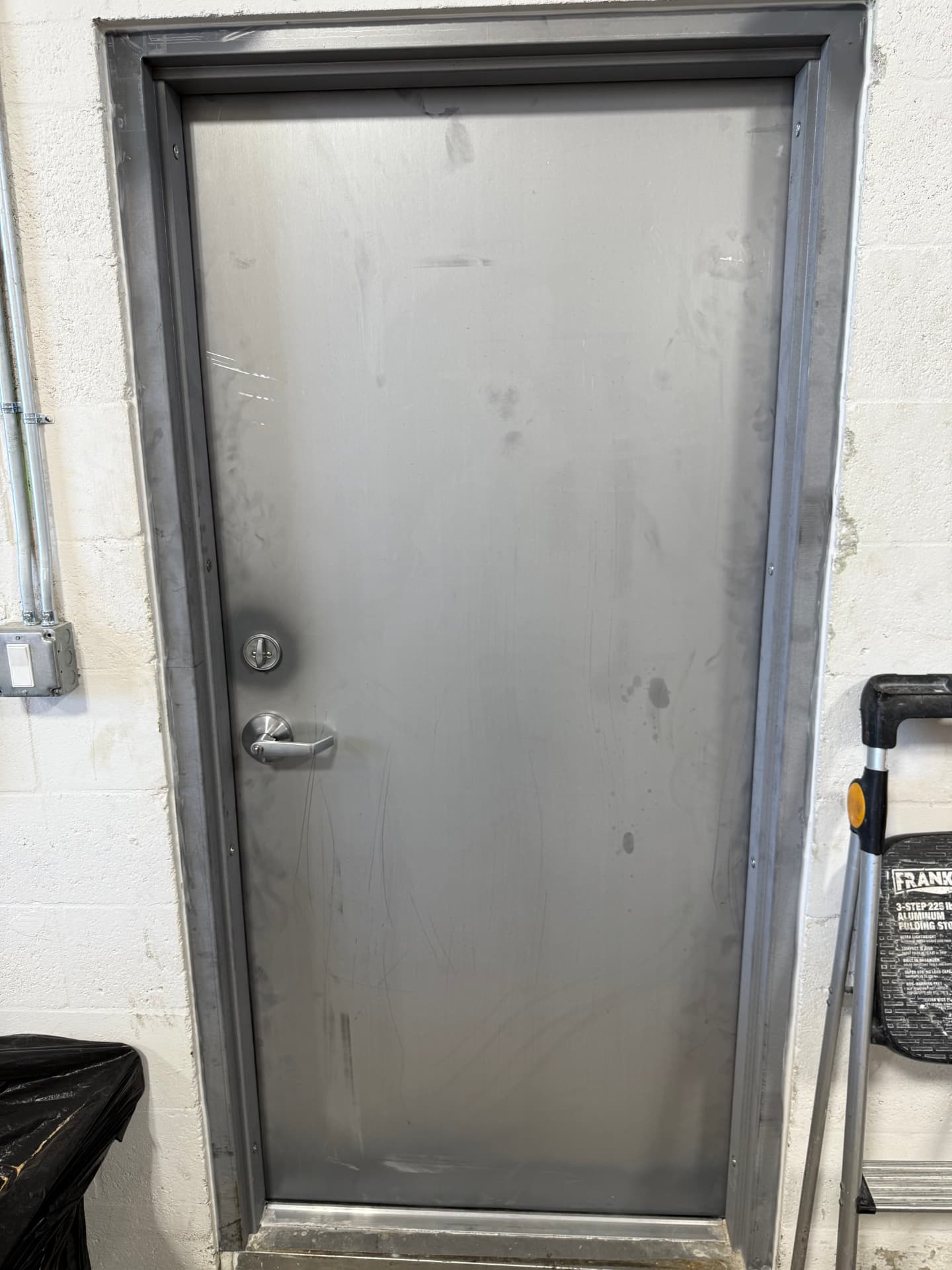

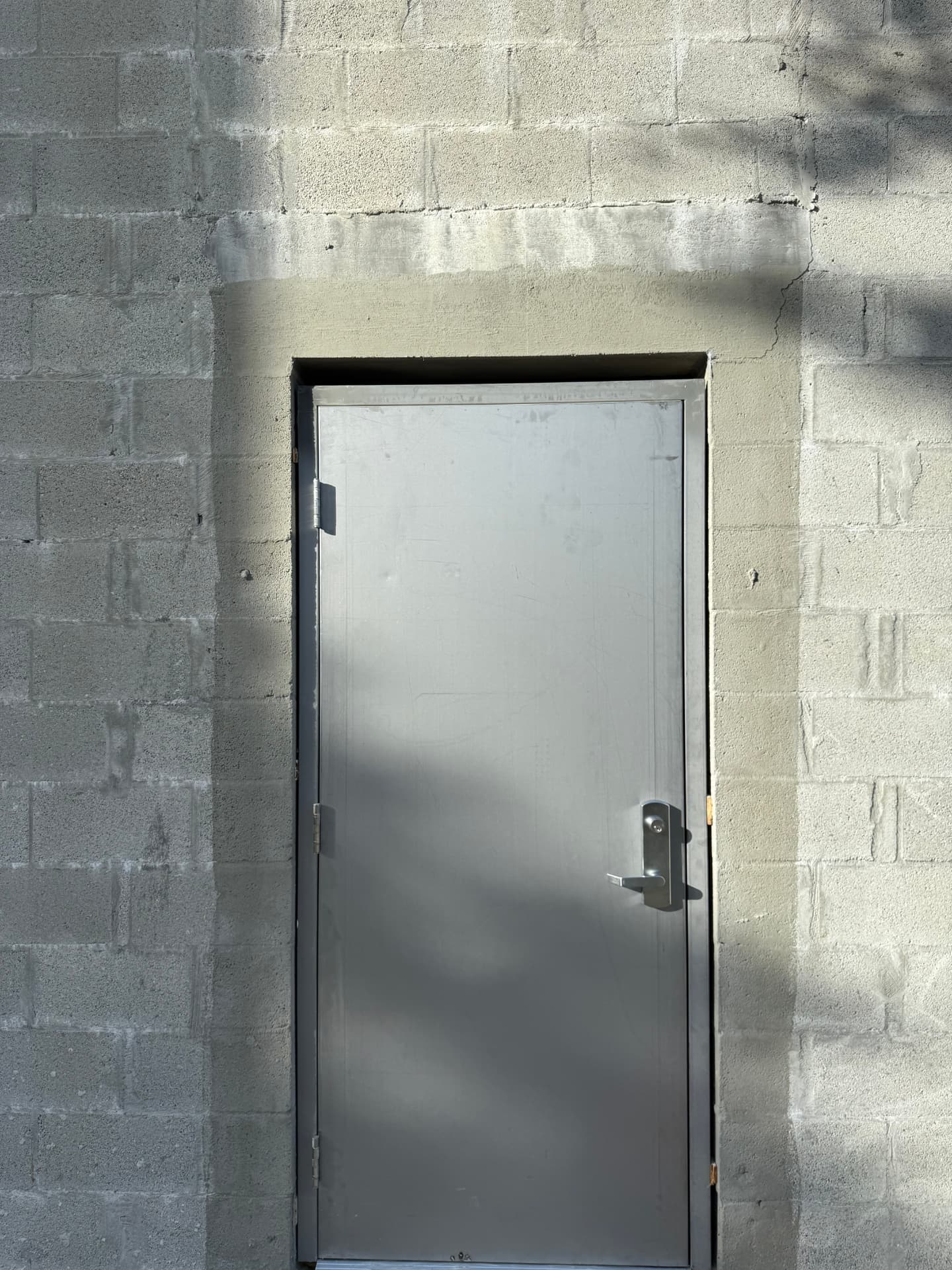

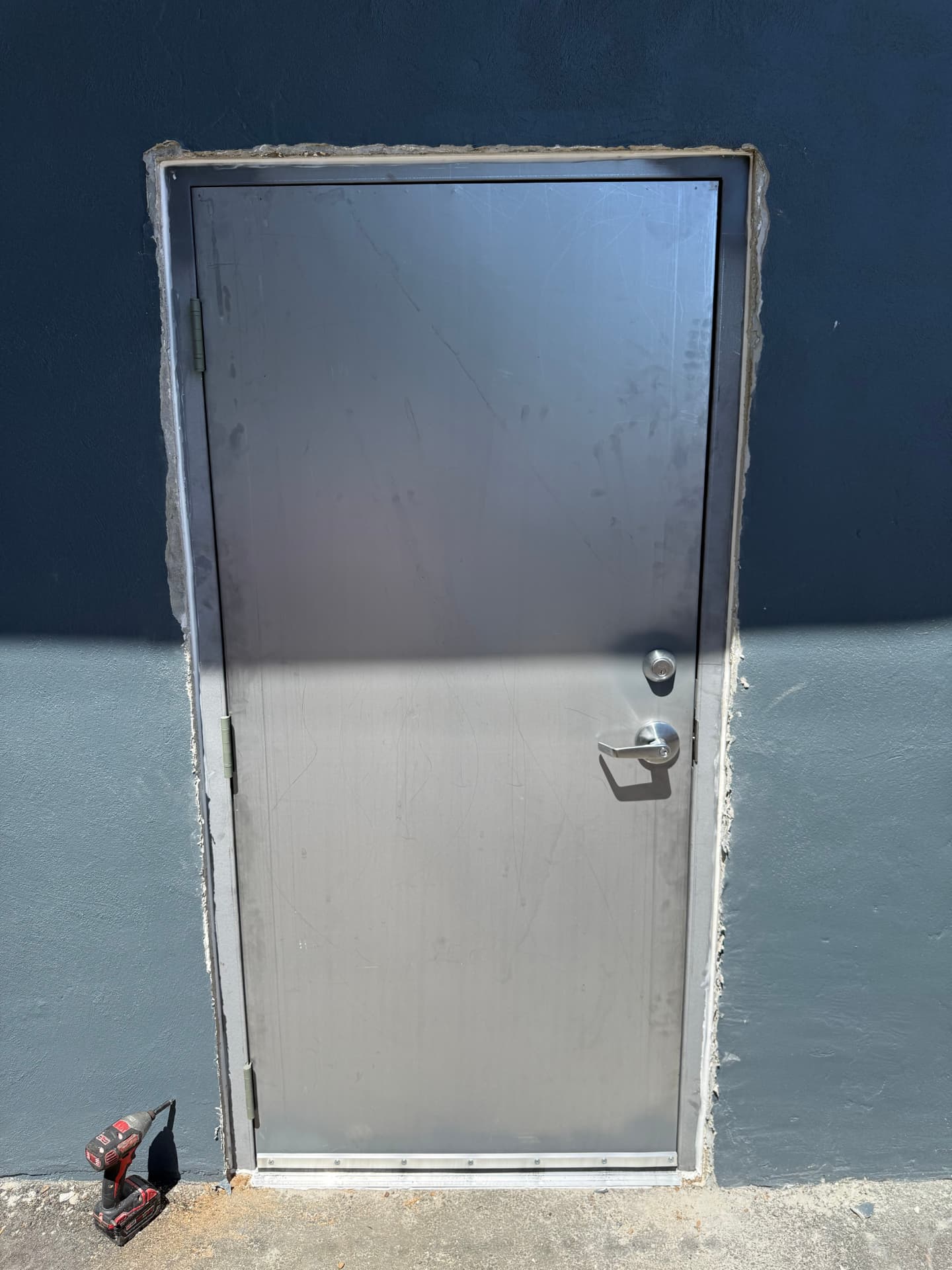

Hollow metal doors & frames.
Full commercial hollow-metal program for Miami-Dade and South Florida: honeycomb-core flush doors in 16, 18 and 20 gauge, plus masonry (6GM/4GM) and drywall (6GD/4GD) knock-down frames in 14 and 16 gauge. G40 galvanized, UL 3-hr fire label with Positive Pressure & 'S' Smoke rating, ANSI/BHMA A250.8. Standard preparations include 161 cylindrical, 86 mortise, blank-reinforced for exit devices, and inactive-leaf sets.
ANSI/BHMA A250.8 · UL Fire-Rated · ADA
WDA-HM-16GHF
16GHF · 16 ga Flush Door
Extra heavy-duty 16 ga honeycomb flush steel door. UL 3-hr fire label with Positive Pressure & 'S' Smoke rating for hospitals, schools and high-abuse commercial openings.
- Series
- 16GHF
- Duty
- Extra Heavy
- Gauge
- 16 ga cold-rolled steel
- Core
- Honeycomb
- Thickness
- 1-3/4" · reversible or handed
- Finish
- G40 Galvanized / Galvalume
- Fire Label
- UL up to 3-hr · Positive Pressure · "S" Smoke
- Reinforcement
- 7 ga hinge · 12 ga closer · 18 ga lock
- Channels
- 16 ga inverted top & bottom
- Sizes
- 2'0"–4'0" W × 6'8"–8'0" H
- Preparations
- 161 · 86 · BR · IA · NIA · BRR
- Hinge Locations
- ST · ME · CE · CU · RE · CH
- Standards
- ANSI/BHMA A250.8 · ADA
WDA-HM-18GHF
18GHF · 18 ga Flush Door
Standard heavy-duty 18 ga honeycomb flush steel door — the workhorse for offices, retail and multi-family common areas. UL fire-rated with G40 galvanized finish.
- Series
- 18GHF
- Duty
- Heavy (Standard)
- Gauge
- 18 ga cold-rolled steel
- Core
- Honeycomb
- Thickness
- 1-3/4" · reversible or handed
- Finish
- G40 Galvanized / Galvalume
- Fire Label
- UL up to 3-hr · Positive Pressure · "S" Smoke
- Reinforcement
- 7 ga hinge · 12 ga closer · 18 ga lock
- Channels
- 16 ga inverted top & bottom
- Sizes
- 2'0"–4'0" W × 6'8"–8'0" H
- Preparations
- 161 · 86 · BR · IA · NIA · BRR
- Hinge Locations
- ST · ME · CE · CU · RE · CH
- Standards
- ANSI/BHMA A250.8 · ADA
WDA-HM-20GHF
20GHF · 20 ga Flush Door
Standard-duty 20 ga honeycomb flush steel door for interior back-of-house, closets and light-commercial openings where budget and lead time matter.
- Series
- 20GHF
- Duty
- Standard
- Gauge
- 20 ga cold-rolled steel
- Core
- Honeycomb
- Thickness
- 1-3/4" · reversible or handed
- Finish
- G40 Galvanized / Galvalume
- Fire Label
- UL up to 3-hr · Positive Pressure · "S" Smoke
- Reinforcement
- 7 ga hinge · 12 ga closer · 18 ga lock
- Channels
- 16 ga inverted top & bottom
- Sizes
- 2'0"–4'0" W × 6'8"–8'0" H
- Preparations
- 161 · 86 · BR · IA · NIA · BRR
- Hinge Locations
- ST · ME · CE · CU · RE · CH
- Standards
- ANSI/BHMA A250.8 · ADA
WDA-HM-6GM
6GM · 16 ga Masonry Frame
16 ga knock-down masonry frame with unequal rabbet, 2" face and 5/8" × 7/16" return stop — the specifier's default for CMU and block openings.
- Series
- 6GM
- Wall Type
- Masonry / CMU
- Gauge
- 16 ga
- Stop
- 5/8" × 7/16" return
- Anchors
- Floor anchor included
- Finish
- G40 Galvanized / Galvalume
- Fire Label
- UL up to 3-hr · Positive Pressure · "S" Smoke
- Profile
- Unequal rabbet · 2" face
- Strike Prep
- 4-7/8" universal
- Silencer Prep
- 9/32"
- Reinforcement
- 7 ga hinge · 18 ga strike
- Assembly
- KD 3-piece · field-assembled
- Components
- Header · Strike Jamb · Hinge Jamb · Cased Opening · Stick
- Standards
- ANSI/BHMA A250.8
WDA-HM-6GD
6GD · 16 ga Drywall Frame
16 ga knock-down drywall frame with 5/8" × 1/2" double-return stop and compression + sill anchors — three-piece for fast install in stud and existing walls.
- Series
- 6GD
- Wall Type
- Drywall / Stud
- Gauge
- 16 ga
- Stop
- 5/8" × 1/2" double return
- Anchors
- Compression + Sill included
- Finish
- G40 Galvanized / Galvalume
- Fire Label
- UL up to 3-hr · Positive Pressure · "S" Smoke
- Profile
- Unequal rabbet · 2" face
- Strike Prep
- 4-7/8" universal
- Silencer Prep
- 9/32"
- Reinforcement
- 7 ga hinge · 18 ga strike
- Assembly
- KD 3-piece · field-assembled
- Components
- Header · Strike Jamb · Hinge Jamb · Cased Opening · Stick
- Standards
- ANSI/BHMA A250.8
WDA-HM-4GM
4GM · 14 ga Masonry Frame
14 ga heavy-gauge masonry frame for high-traffic and abuse-prone commercial openings — schools, hospitals, corrections and industrial.
- Series
- 4GM
- Wall Type
- Masonry / CMU
- Gauge
- 14 ga heavy
- Stop
- 5/8" × 7/16" return
- Anchors
- Floor anchor included
- Finish
- G40 Galvanized / Galvalume
- Fire Label
- UL up to 3-hr · Positive Pressure · "S" Smoke
- Profile
- Unequal rabbet · 2" face
- Strike Prep
- 4-7/8" universal
- Silencer Prep
- 9/32"
- Reinforcement
- 7 ga hinge · 18 ga strike
- Assembly
- KD 3-piece · field-assembled
- Components
- Header · Strike Jamb · Hinge Jamb · Cased Opening · Stick
- Standards
- ANSI/BHMA A250.8
WDA-HM-4GD
4GD · 14 ga Drywall Frame
14 ga heavy-gauge drywall frame — same rugged construction as 6GD in a thicker section for demanding stud-wall openings.
- Series
- 4GD
- Wall Type
- Drywall / Stud
- Gauge
- 14 ga heavy
- Stop
- 5/8" × 1/2" double return
- Anchors
- Compression + Sill included
- Finish
- G40 Galvanized / Galvalume
- Fire Label
- UL up to 3-hr · Positive Pressure · "S" Smoke
- Profile
- Unequal rabbet · 2" face
- Strike Prep
- 4-7/8" universal
- Silencer Prep
- 9/32"
- Reinforcement
- 7 ga hinge · 18 ga strike
- Assembly
- KD 3-piece · field-assembled
- Components
- Header · Strike Jamb · Hinge Jamb · Cased Opening · Stick
- Standards
- ANSI/BHMA A250.8
Materials
Finishes & glass.
Specify frame finish and glass color on the quote request. Mixed configurations across a project are welcome.
Frame finishes · Aluminum
White
Bronze
Clear Anodized
Glass colors
Clear
Bronze
Gray
Green
Azure
Blue
White Interlayer
Privacy
Why W&D Alliance
“We don’t sell windows and doors. We build the thresholds people come home to.”
Professional
Measured, precise and dependable — we speak with the authority of people who know the trade.
Trustworthy
Transparent and accountable. What we promise, we deliver.
Architectural
Designed with line, proportion and a respect for the build.
Section 05 · Quote
Let’s build your order.
Send the product reference (SKU), quantity, sizes and finish for each item. We’ll confirm availability, pricing and lead time.
Contact
Audience
Builders · Contractors · Homeowners
